FUNCTION:
Particulate Removal
SPECIFICATIONS:
Precision:30 Micron
Thread: 1"-12
Filter Size: Diameter:3.75" Height:7.13"
Max Flow Rate:25GPM(94.6LPM)
Max Working Pressure:50PSI(3.4BAR)
Max Differential Pressure:25PSID(1.7BAR)
Media:Micro glass
FUEL TYPE:
Straight Gasoline/Ethanol blended fuel/Diesel/ULSD/Biodiesel
PRECAUTIONS:
Special accessories for refueling machines.
Only trained authorized service personnel can change and install filters.
Check for leaks after installation.
NOT FOR USE WITH AVIATION FUELS!
EFFECTIVE PROTECTION!
★Remove impurities and particulate from fuel to prevent entry into pumps or engines,ensuring fuel quality.
★When the flow rate slows down,notify the operator to replace it promptly.

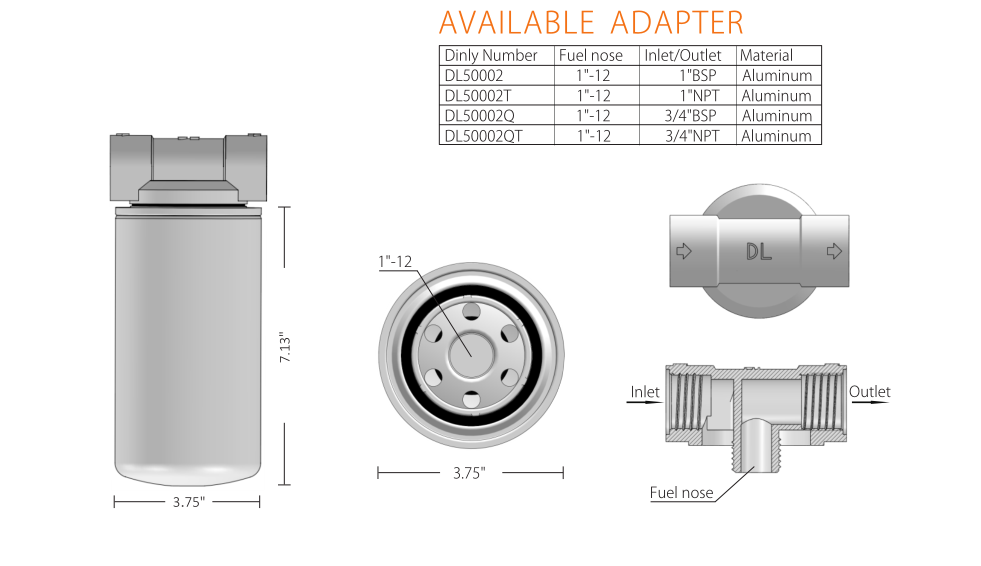

Filter Diamensions
