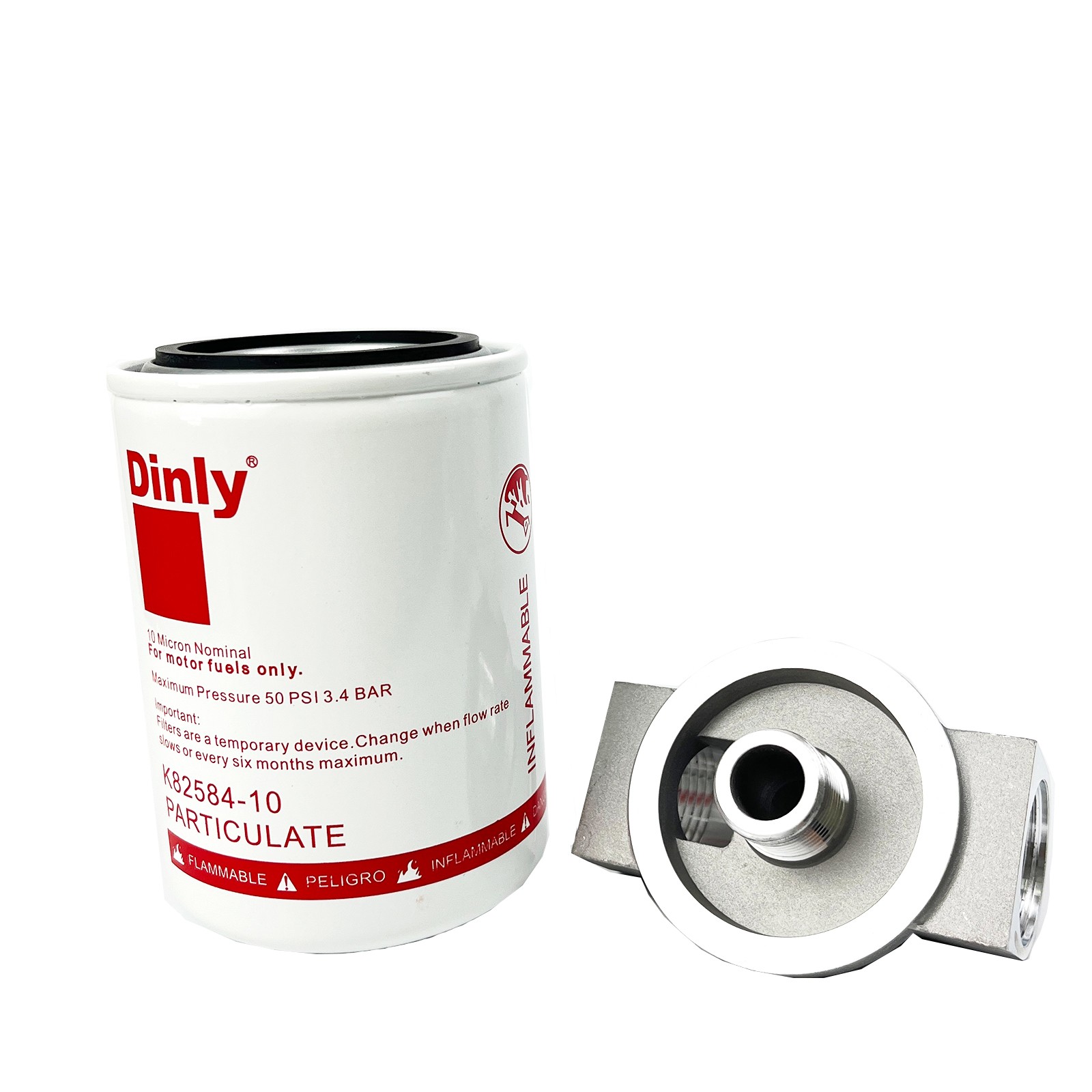

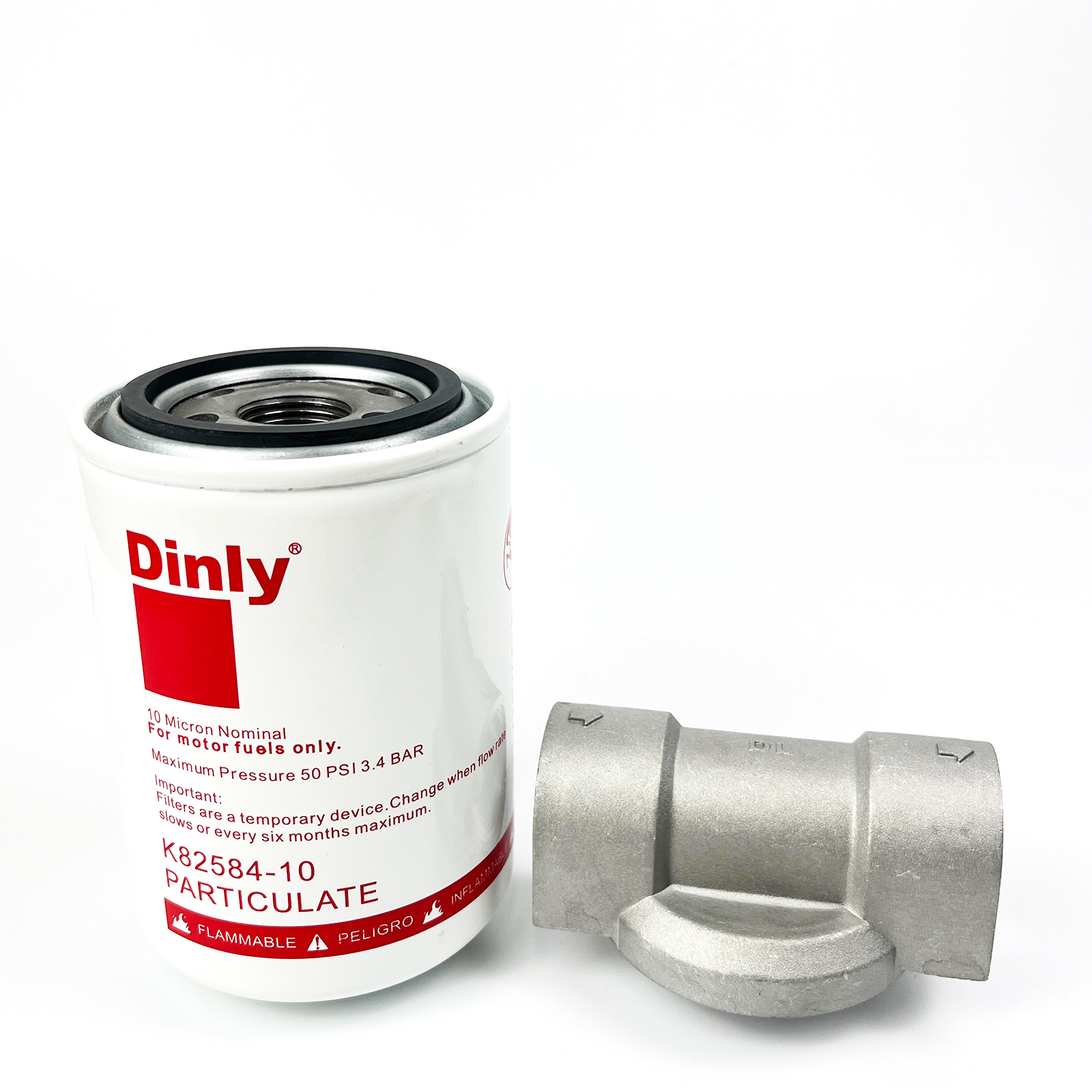

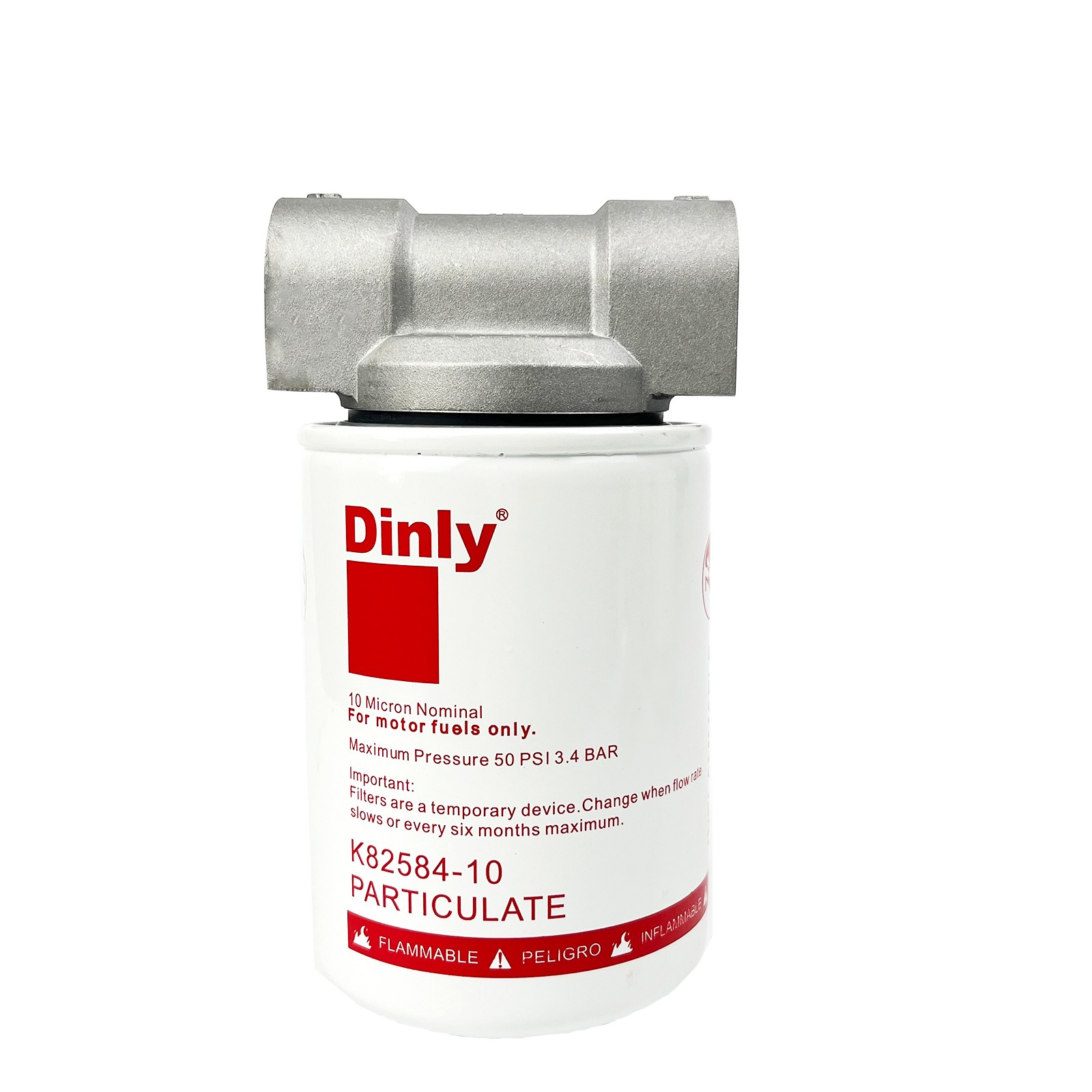

The Dinly filter model K82584-10DL is a particulate removing spin-on filter designed to remove particulate from neat gasoline, Ethanol blended gasolines, diesels, Biodiesel, ULSD (Ultra Low Sulfur Diesel), kerosene and fuel oils.
The Dinly filter model K82584-10DL utilizes a standard 1"-12 UNF mounting thread ref. (3/4" flow) required for most spin-onfilter adapters used in Gilbarco, Wayne, Bennet, Tokheim and other major manufacturers’ dispensers, as well as with adapters used in the aftermarket.
The Dinly filter model K82584-10DL Cross References with the Cim-Tek 70010(300-10) and PertoClear 40510P.
| Model | K82584-10DL |
| Filter Type | Spin-On |
| Media Type | Cellulose |
| Micron Rating | 10 Micron (nominal) |
| Diameter | 3.75" |
| Height | 5.31" |
| Mounting Thread | 1" – 12 UNF |
| Flow Rate | 25 gpm (94.6 lpm) |
| Flow | 3/4" flow |
| Shell Thickness | 0.05 |
| Gasket Material | Buna N |
| Collapse (Min.) | 150 psid (10.3 bar) |
| Burst (Min.) | 250 psi (17.2 bar) |
| Max. Operating Temp. | 250°F (139°C) |
If you need our products please write down any questions, we will reply as soon as possible.
