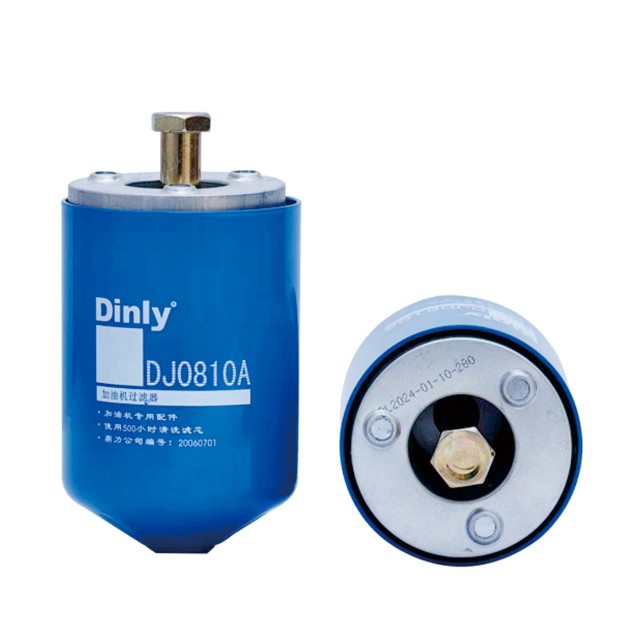

DJ0810A Fuel Dispenser Filter Reusable Filter with Magnetic Filter Element
DJ0810A Fuel Dispenser Filter Reusable Filter with Magnetic Filter Element

DJ0810A Fuel Dispenser Filter Reusable Filter with Magnetic Filter Element

Fuel Type: Straight Gasoline, Ethanol and methanol Blends up to 10%,Diesel/ULSD

Function: Remove Particulate

Thread: M10 x 1-6H

Filter Size: 3.75" x 5.31"

Media: CELLULOSE
Specifications
1. The DJ0810A magnetic filter screen is of reliable quality. It adopts the magnetic adsorption principle, which can effectively adsorb ferromagnetic impurities in the fuel, has a high filtration accuracy, and can better protect the fuel system of the fuel dispenser and extend the service life of the equipment.
2. By adopting advanced filtering materials and technologies, it can effectively filter out tiny impurities in the fuel, such as rust, sand particles, and dust. The filtration accuracy can reach the micrometer level, ensuring the purity of the fuel and enhancing the working efficiency and reliability of the fuel dispenser.
3. It features a reasonable structural design with unobstructed internal flow channels. While ensuring high filtration accuracy, it has a large flow rate, which can meet the refueling demands of the fuel dispenser during peak hours. Moreover, it has low resistance and will not significantly affect the fuel output speed of the fuel dispenser.
4. The overall structure design is compact and reasonable, easy to install and maintain. It adopts a detachable design, which is convenient for users to operate when the filter element needs to be replaced, reducing maintenance costs and time.
5.The shell is made of high-quality metal materials, featuring excellent compressive strength and corrosion resistance, capable of adapting to various harsh working environments. The internal filter element is made of high-quality filter materials, offering a long service life and reducing the trouble of frequent filter element replacement.



The Reusable Filter

1. The Reusable filter are designed for enlarge the filter working life and substitute the disposable filter, in order to save customer’s cost and protect the environment.

2. Reusable filter are only need to unload and clean the filter cartridge and then install back for use, in order to meet the markets request, we development the paper material cartridge, stainless steel mesh material and water absorb cartridge for substitutes.







Technical Parameter
Model DJ0810A
Filter Type The Reusable Filter
Media Type Cellulose
Micron Rating 10/30/144Micron (nominal)
Diameter 97mm
Height 135mm
Flow Rate 25 gpm (94.6 lpm)
Shell Thickness 0.05
Gasket Material Buna N
Collapse (Min.) 150 psid (10.3 bar)
Burst (Min.) 250 psi (17.2 bar)
Max. Operating Temp. 250°F (139°C)
