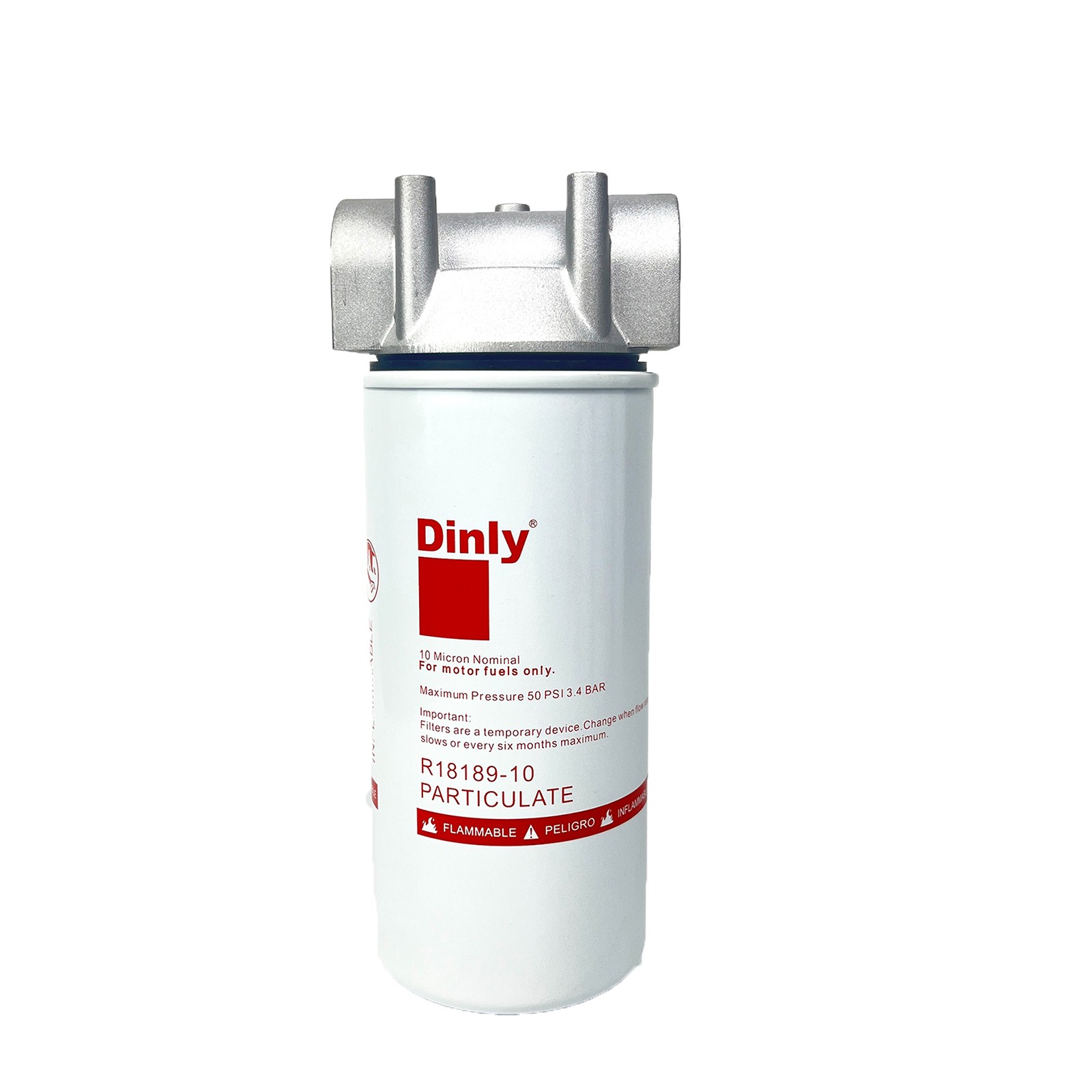

1. R18189-10L filter offers efficient 10 micron (nominal) particulate removal.
2. R18189-10L is particulate removing spin-on filters designed to remove particulate from neat gasoline, Ethanol blended gasolines, diesels, BiodieselULSD (Ultra Low Sulfur Diesel), kerosene and fuel oil.
3. R18189-10L is particulate removing filters. These filters are designed for particulate removal only and will not react to water in fuels or phase separation in ethanol blended gasoline to slow flow.
4.The maximum flow rate is 25 gpm (94.6 lpm). Maximum operating pressure is 50 psid (3.4 bar). Collapse pressure is 150 psid (10.3 bar). Maximum operating temperature is 250°F (139°C).
5.Designed for gasoline or diesel service station pumps,commercial fueling dispensers.
6.When contaminates such as dirt, rust, and microbial growth (non-liquid contamination) pass through the filter, the media captures the particulate.
7.The model R18189-10L utilizes a standard 1 1/2"-16 UNF mounting thread ref. (1" flow) required for most spin-on filter adapters used in Gilbarco, Wayne, Bennet, Tokheim and other major manufacturers' dispensers,as well as with adapters used in the aftermarket.
