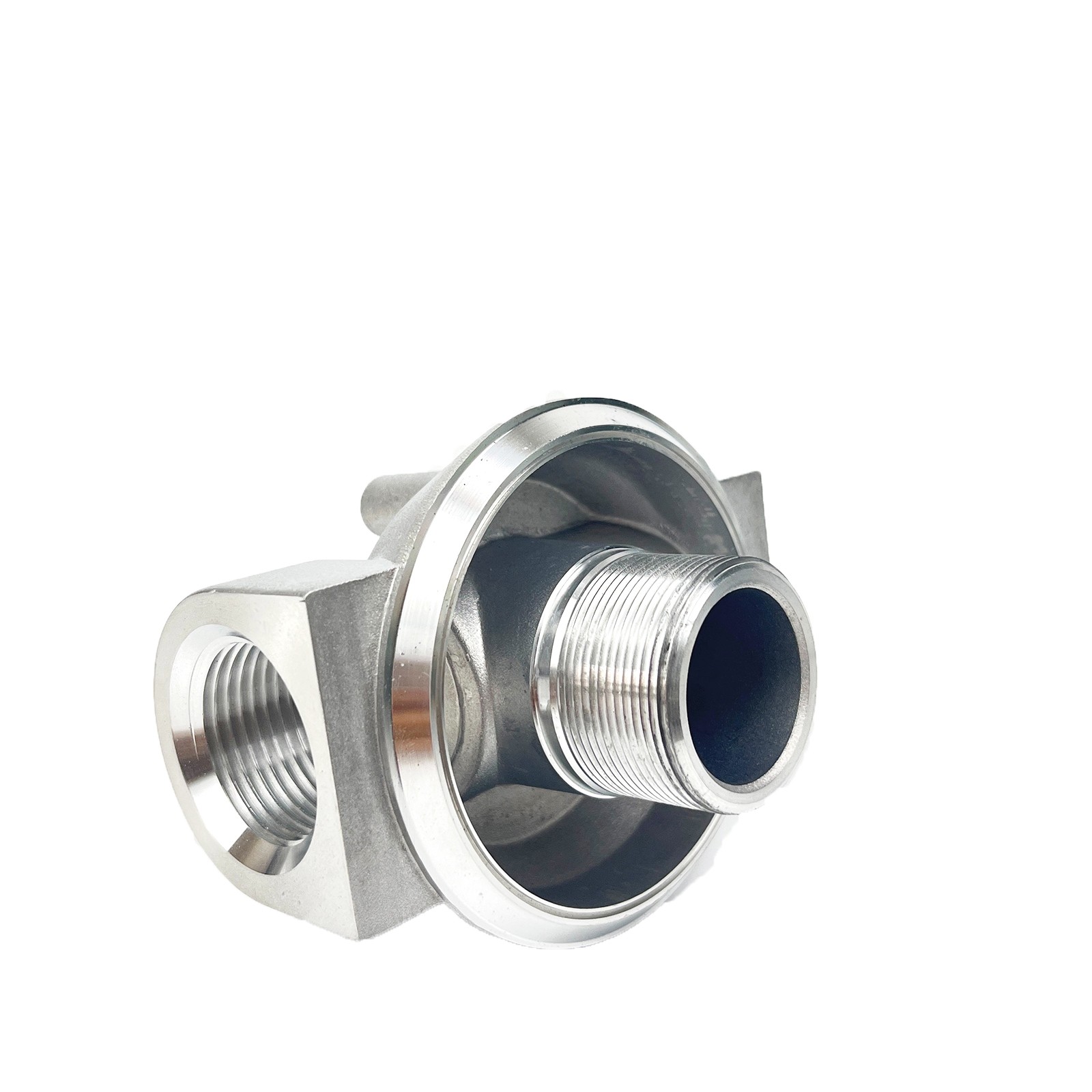

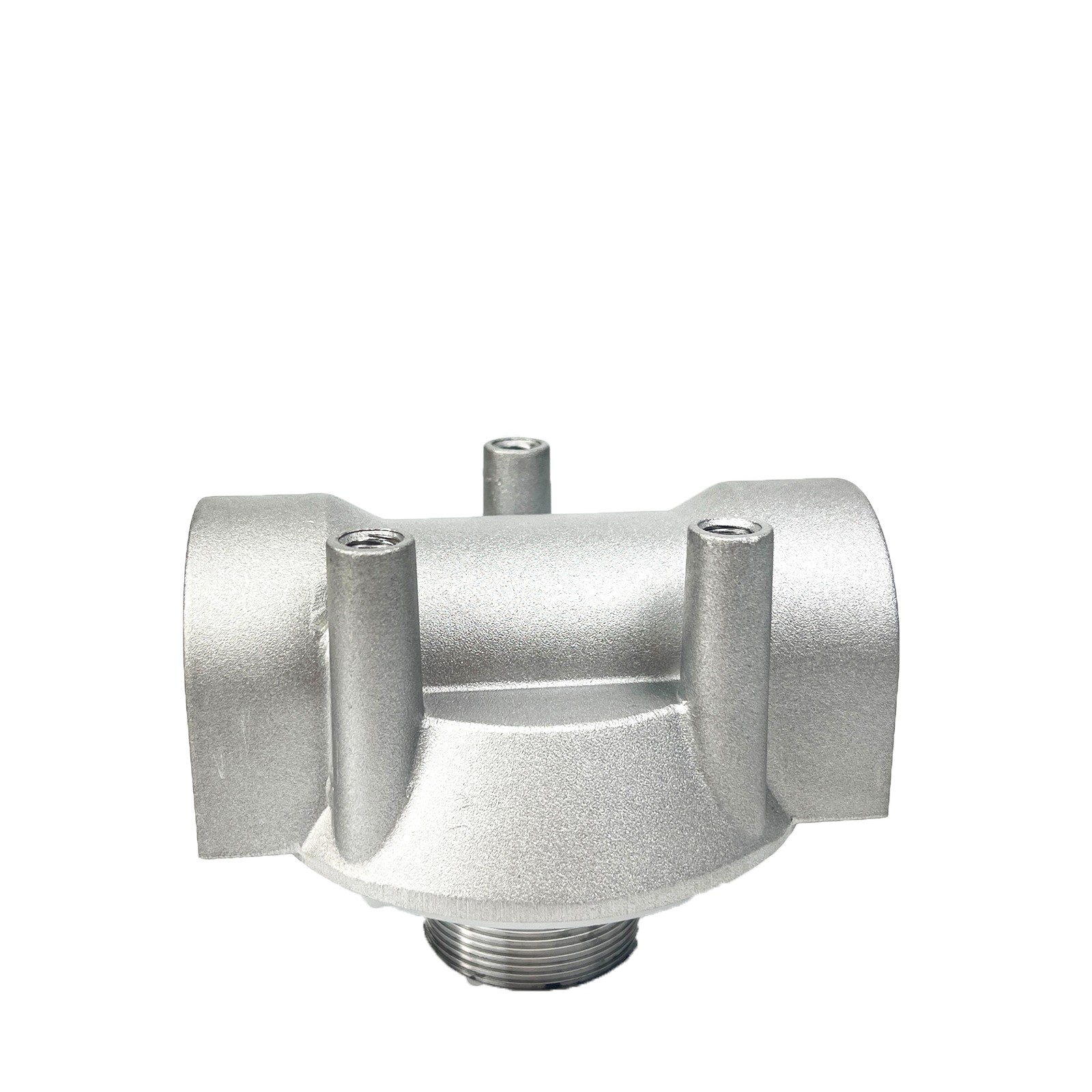

Fuel Filter Adapter
Diesel fuel filter adaptors designed for gasoline or diesel service station pump, commercial fueling dispensers, and mostservice station dispensers and Censtar dispenser, Beijing Sanki and many other types of dispensers. The function is to connect filter and tube.

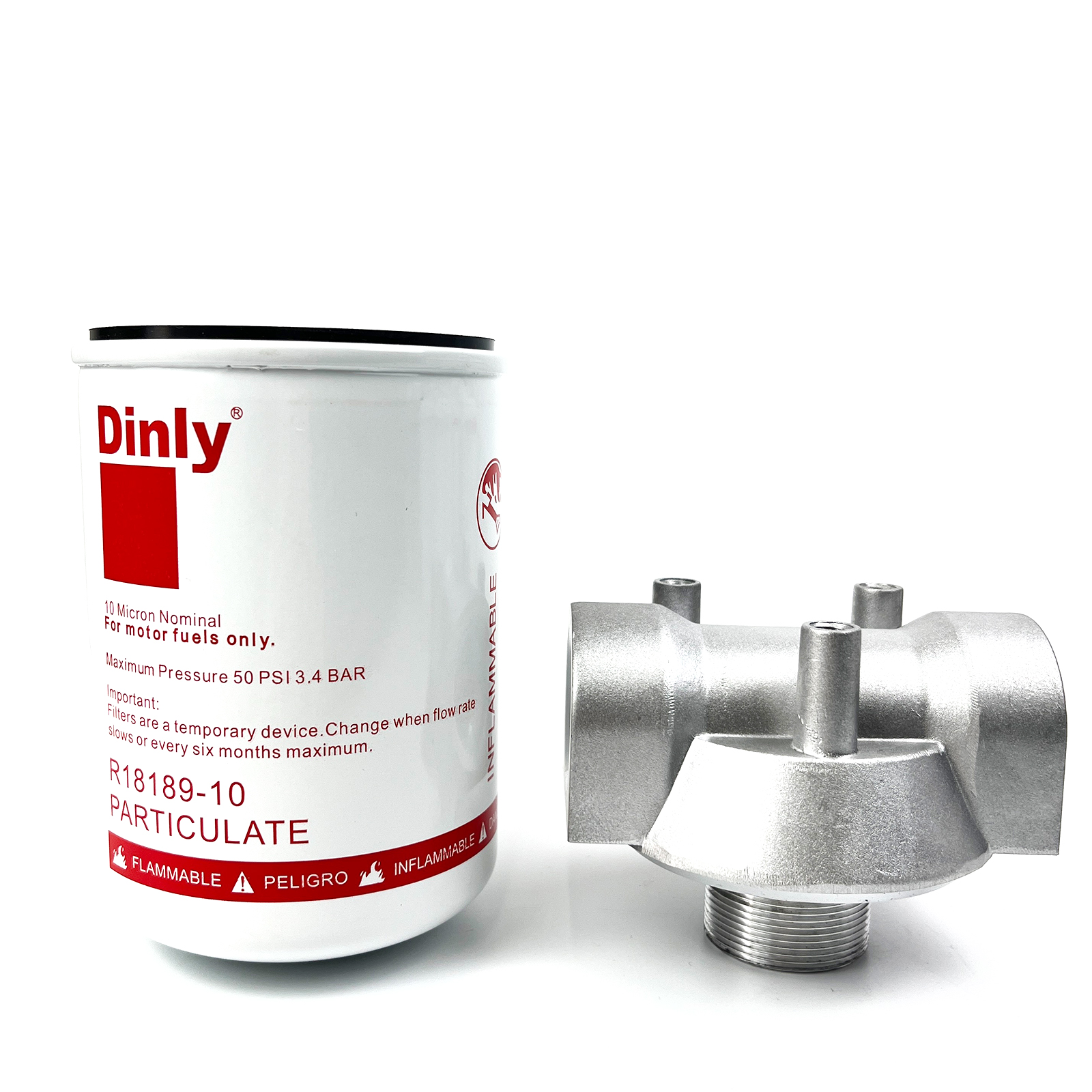

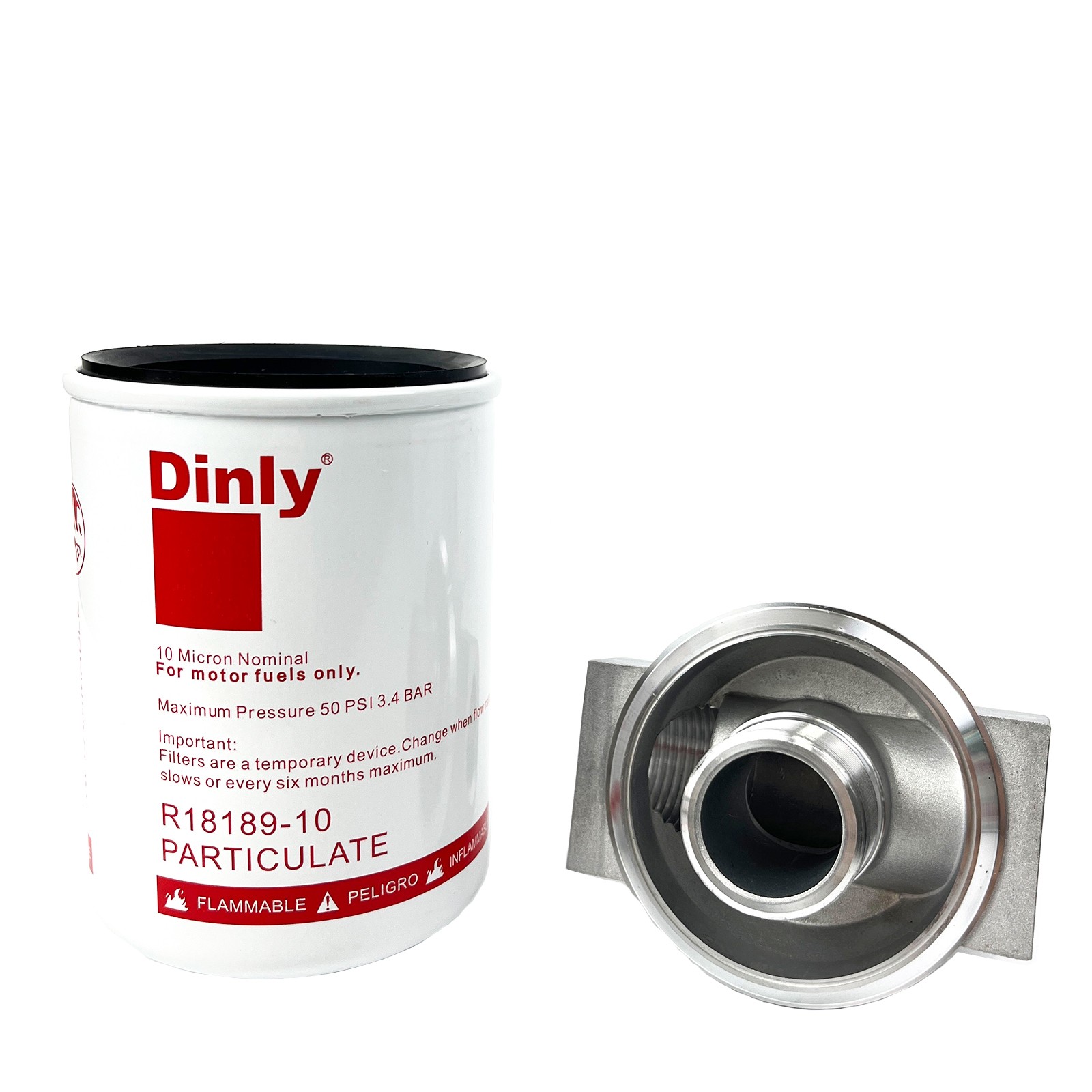

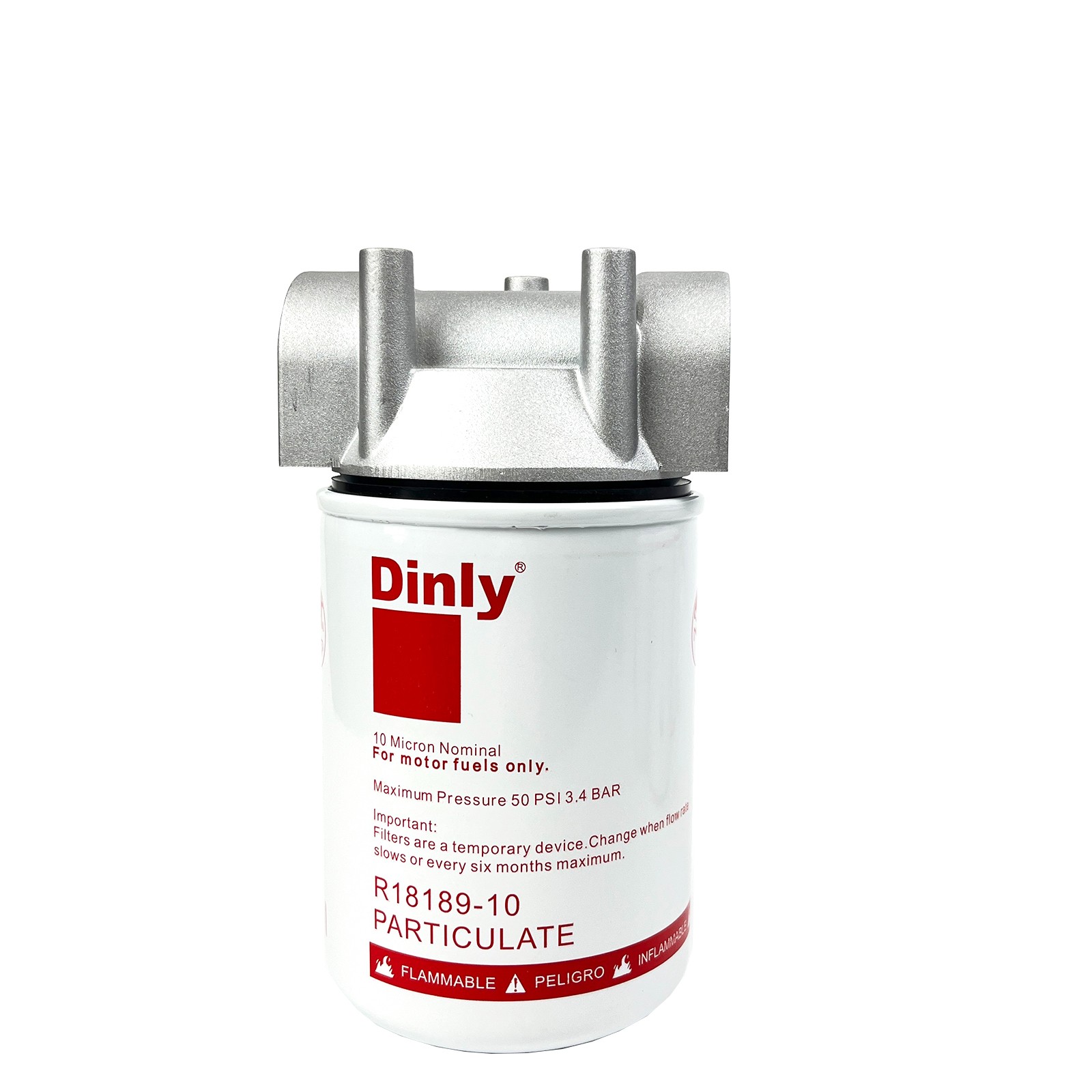

The Dinly filter model R18189-10 is a particulate removing spin-on filter designed to remove particulate from neat gasoline, Ethanol blended gasolines, diesels, Biodiesel, ULSD (Ultra Low Sulfur Diesel), kerosene and fuel oils.
The Dinly filter model R18189-10 utilizes a standard 1 1/2"-16UNF mounting thread ref. (1" flow) required for most spin-onfilter adapters used in Gilbarco, Wayne, Bennet, Tokheim and other major manufacturers’ dispensers, as well as with adapters used in the aftermarket.
The Dinly filter model R18189-10 Cross References with the Cim-Tek 70015(400-10) and PertoClear 40510P-AD.
Model | R18189-10DL |
Filter Type | Spin-On |
Media Type | Cellulose |
Micron Rating | 10 Micron (nominal) |
Diameter | 3.75" |
Height | 5.31" |
Mounting Thread | 1 1/2"-16 UNF |
Flow Rate | 25 gpm (94.6 lpm) |
Flow | 3/4" flow |
Shell Thickness | 0.05 |
Gasket Material | Buna N |
Collapse (Min.) | 150 psid (10.3 bar) |
Burst (Min.) | 250 psi (17.2 bar) |
Max. Operating Temp. | 250°F (139°C) |
